Forming machinery

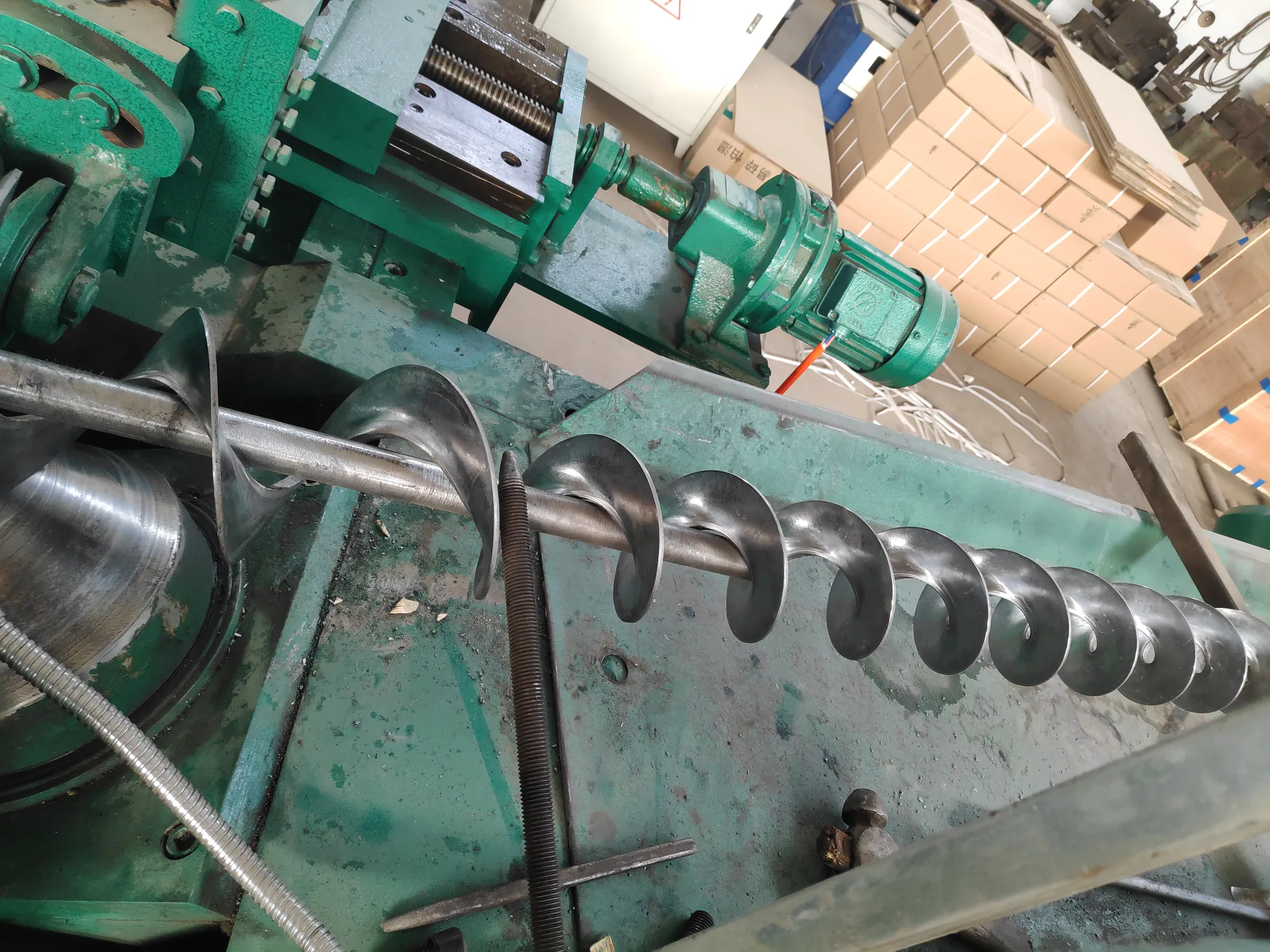

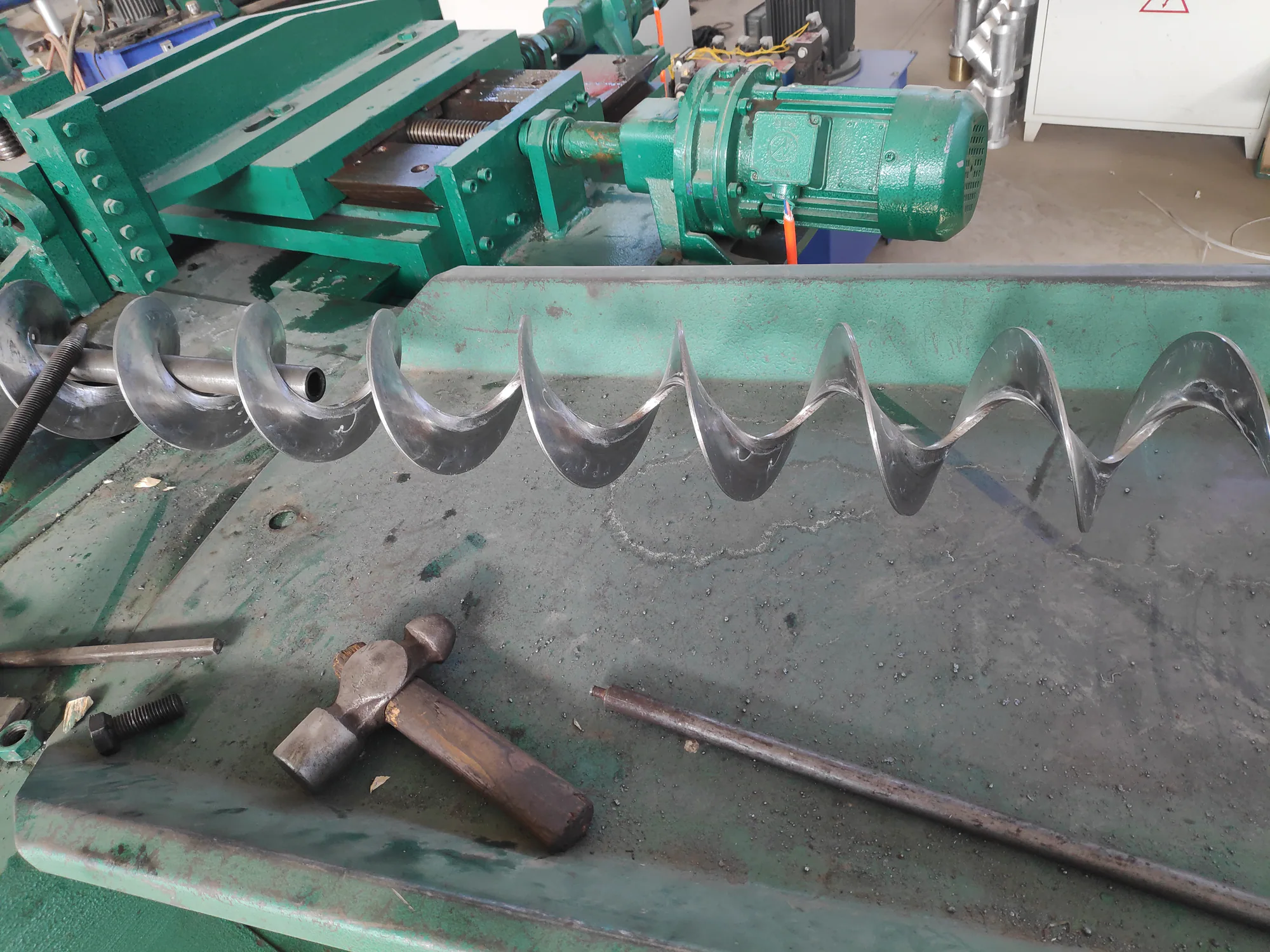

HS1306M Cold Rolling Machine
Screw flight cold rolling machine for strip up to 130 mm wide and 2–6 mm thick.
Engineering fit
Built around the dimensions, material and production target that matter
A continuous screw flight rolling machine for medium strip widths and continuous flight production.
Use the stated range as a practical starting point. We confirm the final configuration against your drawing, material and operating conditions.
Discuss this product
- Continuous screw flight production
- Conveyor flighting
- Mild steel strip
- Stainless steel strip
Size reference
Available Dimension Range
Typical sizes are shown below. Custom dimensions can be produced based on your drawing or requirements.
| Parameter | HS1306M |
|---|---|
| Roller Speed | Max 17.8rpm |
| Main Motor Power | 22Kw |
| Machine Power | 32.5Kw |
| Motor Speed | 1460rpm |
| Strip Max Width | 130mm |
| Strip Thickness | 2-6mm |
| Min ID | 20mm |
| Max OD | 600mm |
| Work Efficiency | 2T/H |
| Strip Material | Mild Steel, Stainless Steel |
| Weight | 6 Ton |
Workshop reference

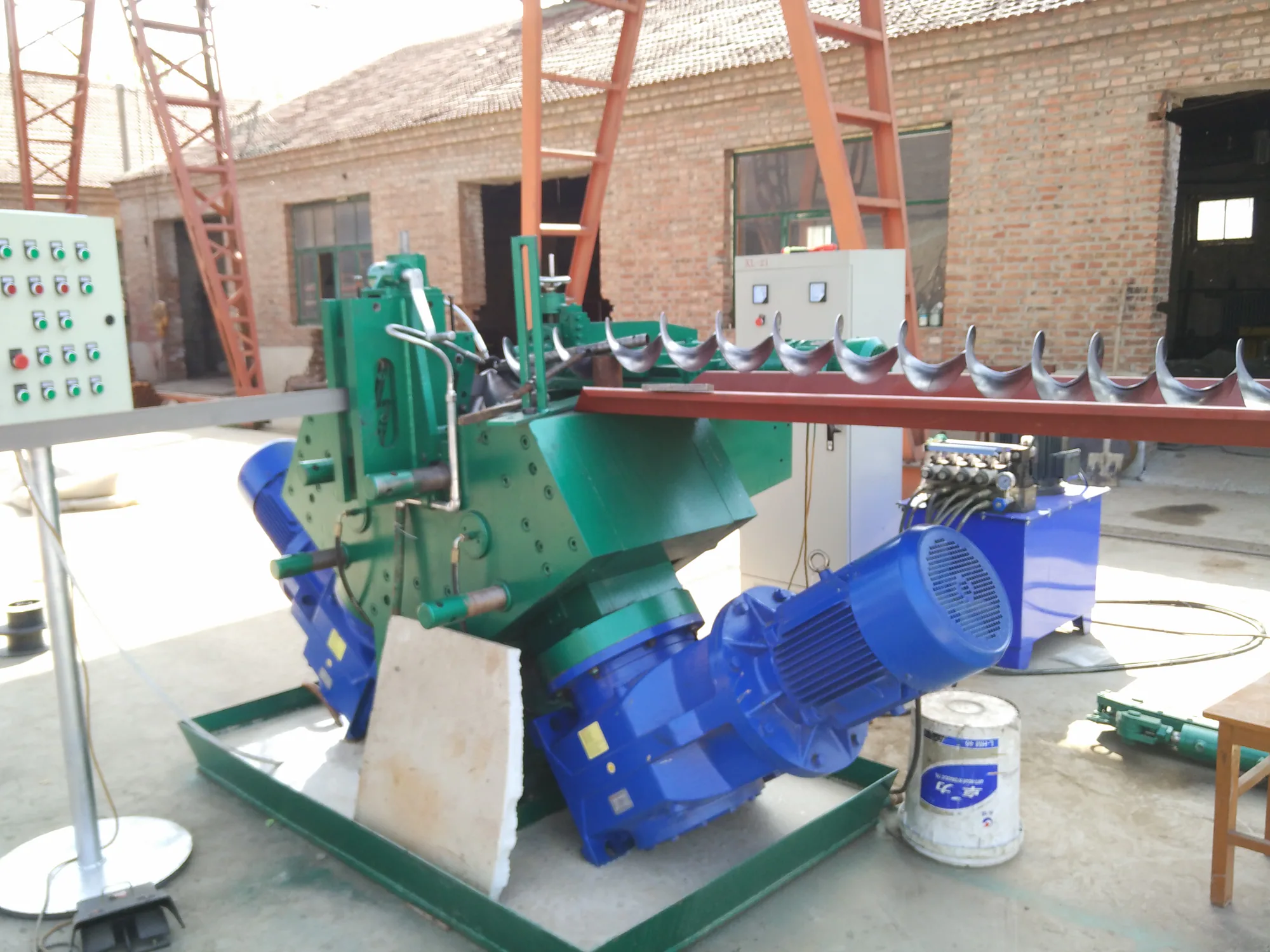

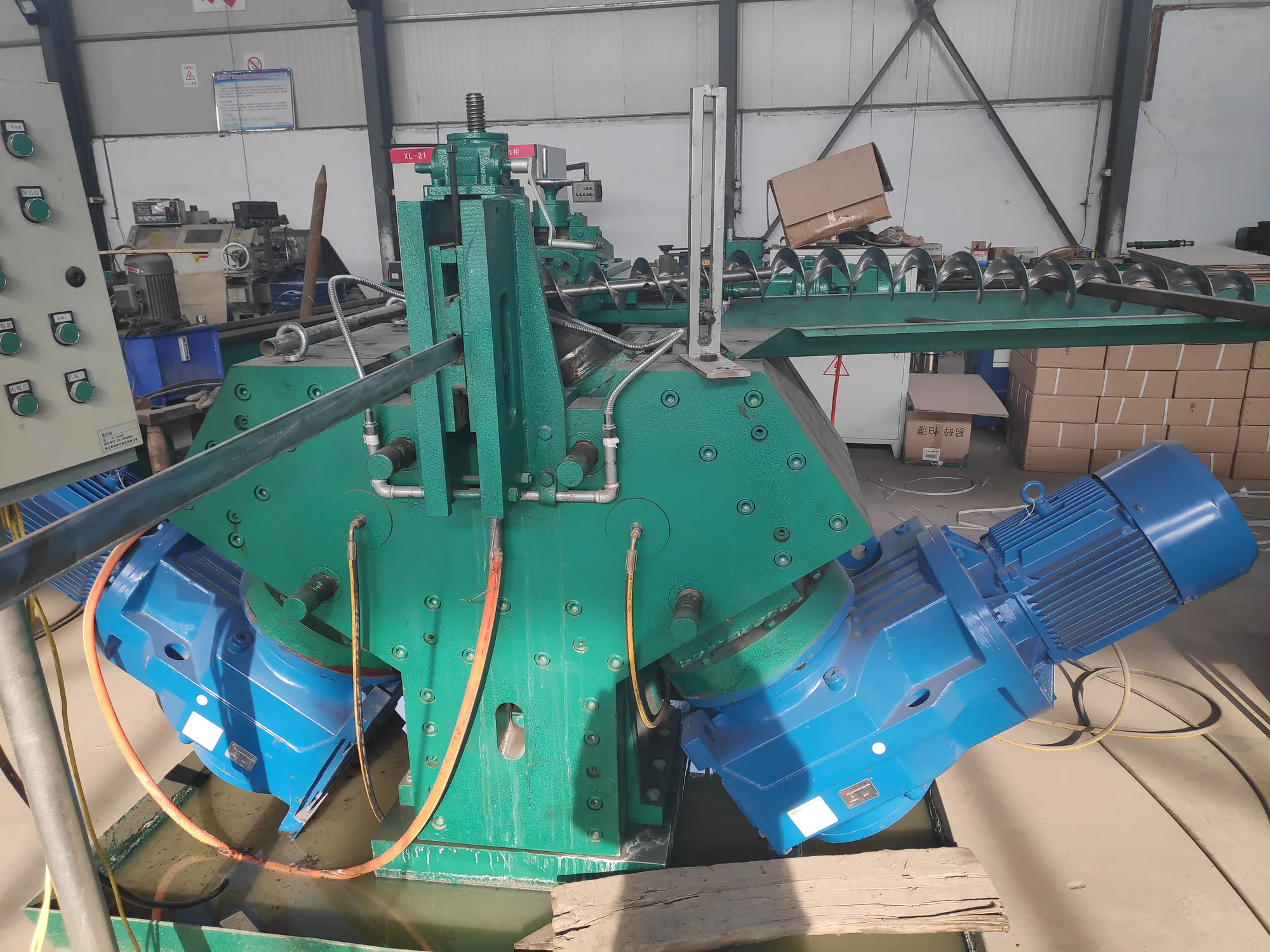

Product and process views
Production route

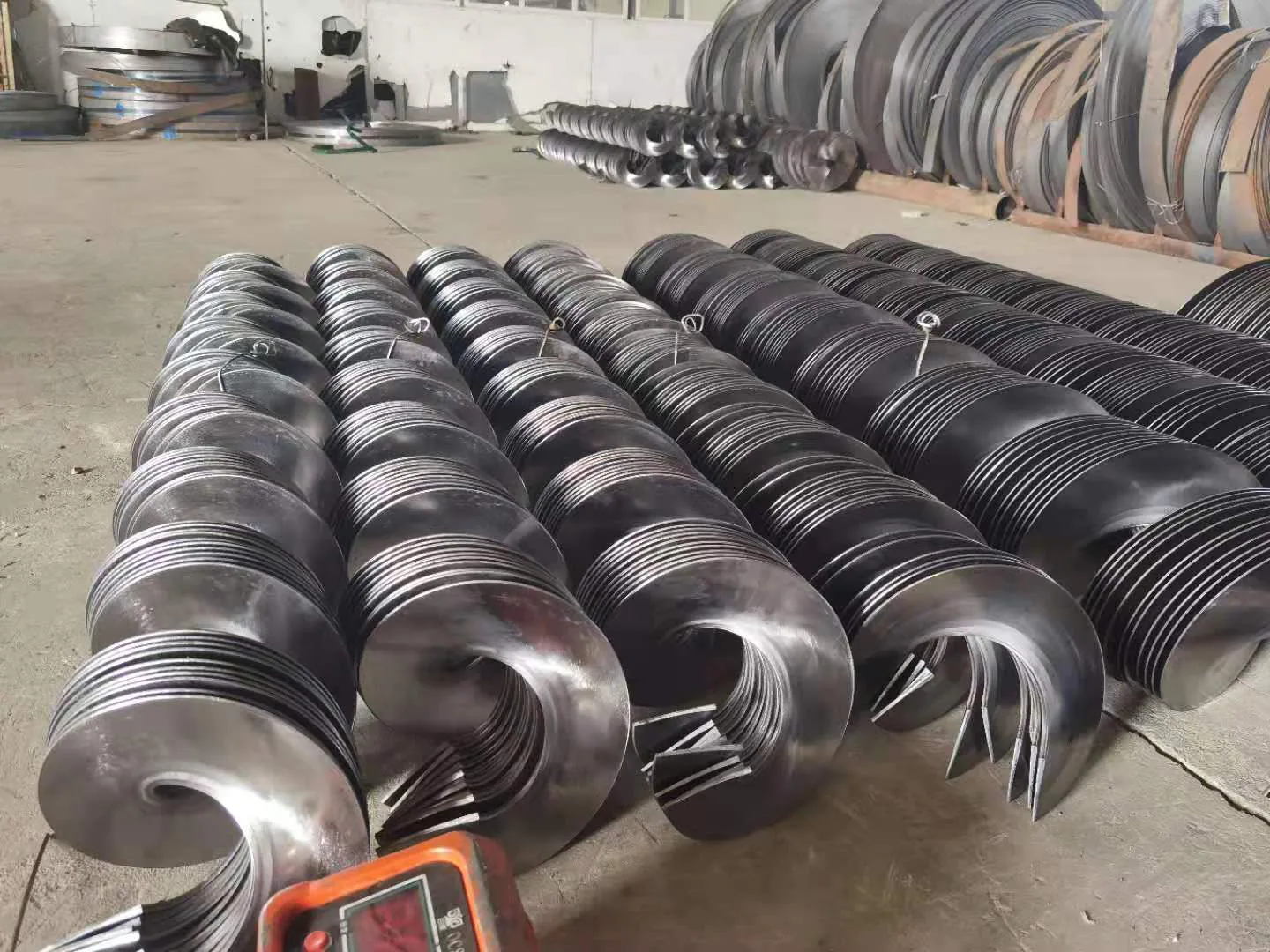

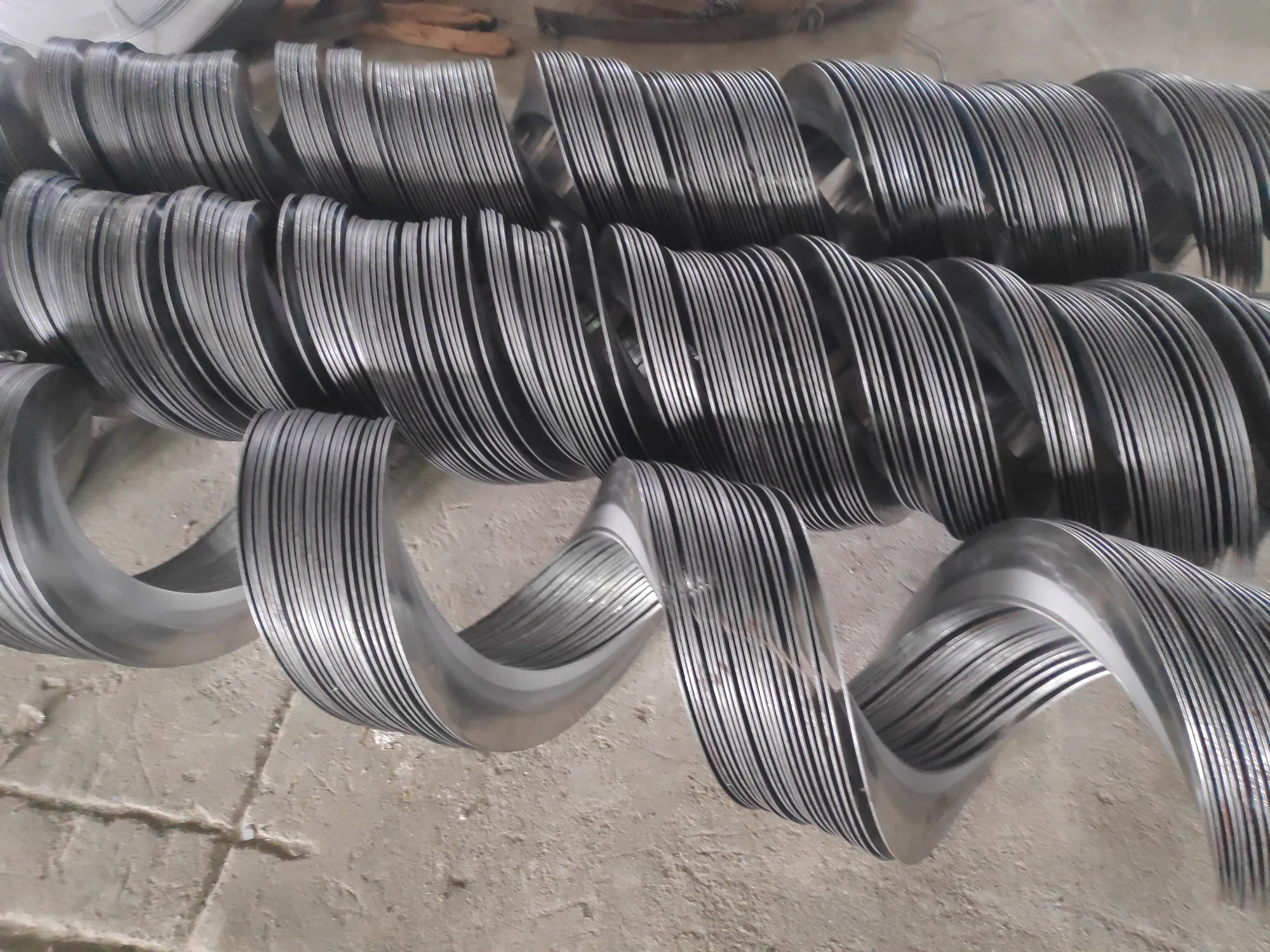

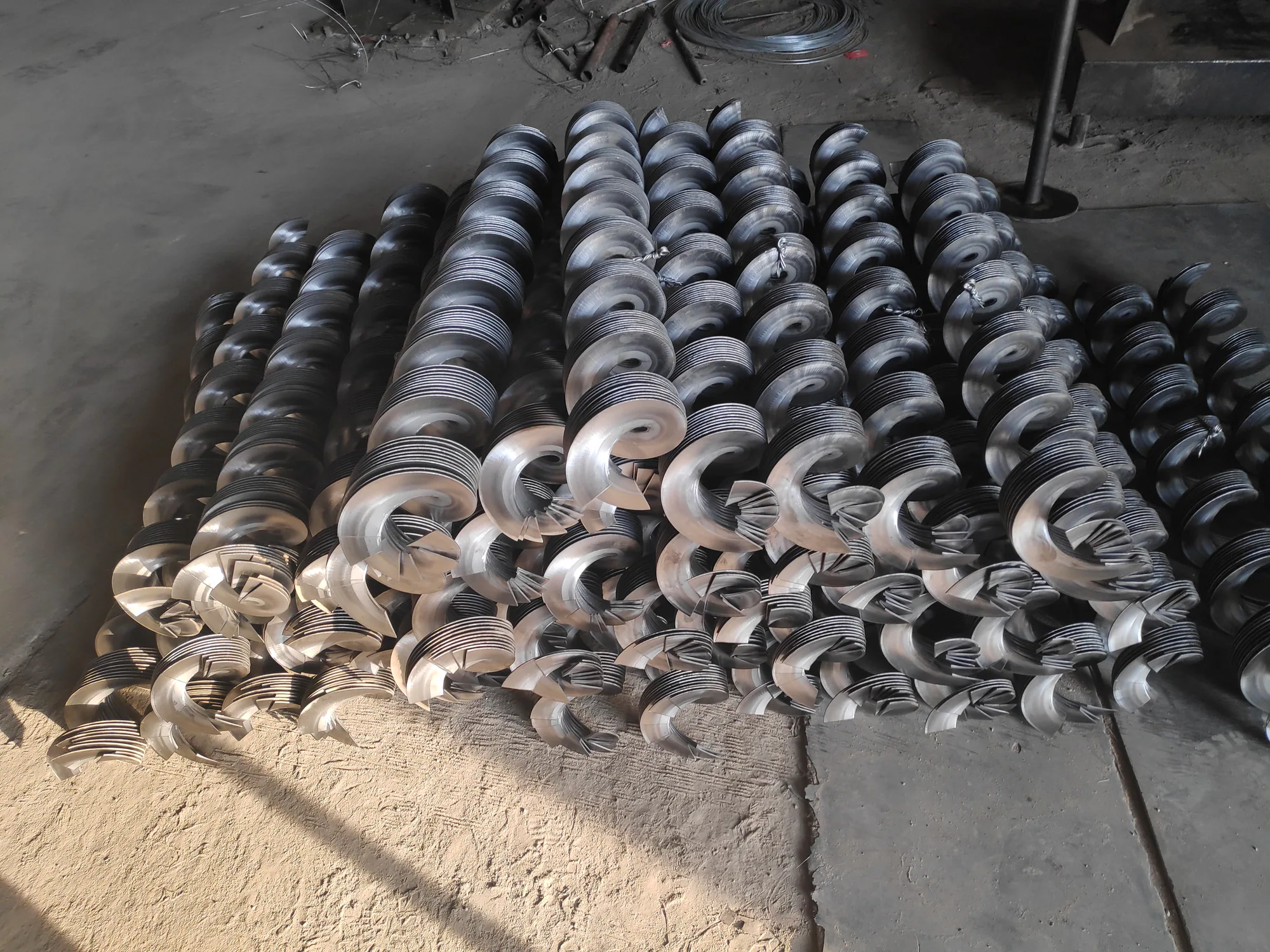

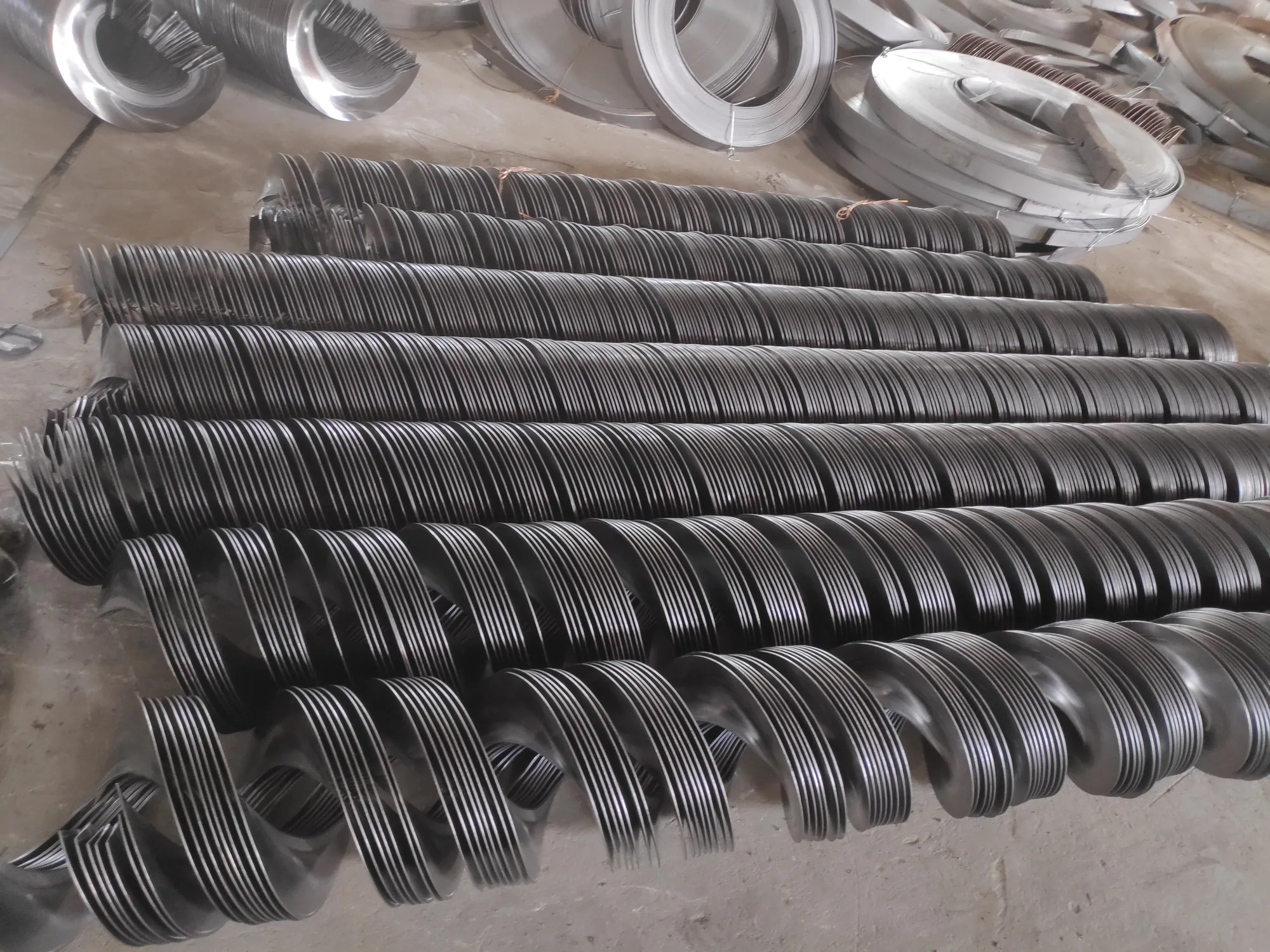

Forms continuous screw flight from steel strip through cold rolling.
Material and output review
The documented range covers mild steel and stainless steel. A final proposal should be based on the selected strip, required geometry and the planned production rate.
Working range
HS1306M bridges compact and larger cold-rolling equipment. The documented values are useful for initial comparison, but the suitable production range must be checked from the complete flight profile. ID, OD, pitch, strip width, thickness, material and finished length interact, so no single limit confirms that a part can be formed.
Installation inputs
Share the available floor plan, feed direction, coil-loading method, material-straightening plan and finished-flight support. Include operator and maintenance access as well as the intended cut-off, welding or assembly station downstream.
Electrical supply confirmation
State the destination voltage, phase, frequency, connected-load allowance and any local control-component requirements. Electrical and control scope is confirmed in the quotation for the installation site; it should not be inferred from a general model description.
Tooling and product drawings
The roller, guide and trial plan should be based on representative flight drawings and actual material grades. Send the smallest, largest and most difficult products in the planned range so that tooling coverage, changeover expectations and trial stock can be reviewed before order confirmation.
HS1306M quote checklist
- OD, ID, pitch, thickness, hand and finished flight length
- Strip width, grade, coil dimensions and surface condition
- Planned product mix, batch sizes and operating schedule
- Required output stated with the representative product drawing
- Voltage, phase, frequency and available connected load
- Workshop plan and upstream/downstream equipment interfaces
- Coil handling, straightening, cut-off and finished-flight support requirements
Before quotation
Frequently asked questions
Use these answers as a starting point. Final geometry, material and equipment scope are confirmed from the project information.
How is the suitable HS1306M production range confirmed?
It is checked from the combined ID, OD, pitch, strip width, thickness, material and finished length on the buyer's representative drawings.
What coil and strip data should be provided?
State strip grade, width, thickness, surface condition, coil inside and outside diameter, coil weight and the planned loading and straightening method.
Can voltage and controls be adapted to the installation site?
Destination voltage, phase, frequency, connected load and control requirements are reviewed before quotation. Final hardware and protection scope is project-specific.
What line interfaces need to be shown?
Show coil handling, straightening, feed direction, cut-off, finished-flight support and any downstream welding or assembly station on the workshop layout.
Continuous Screw Flight Cold Rolling Machine
A model-selection page for workshops planning continuous cold-rolled flight production across different strip widths, thicknesses and output targets.
View details

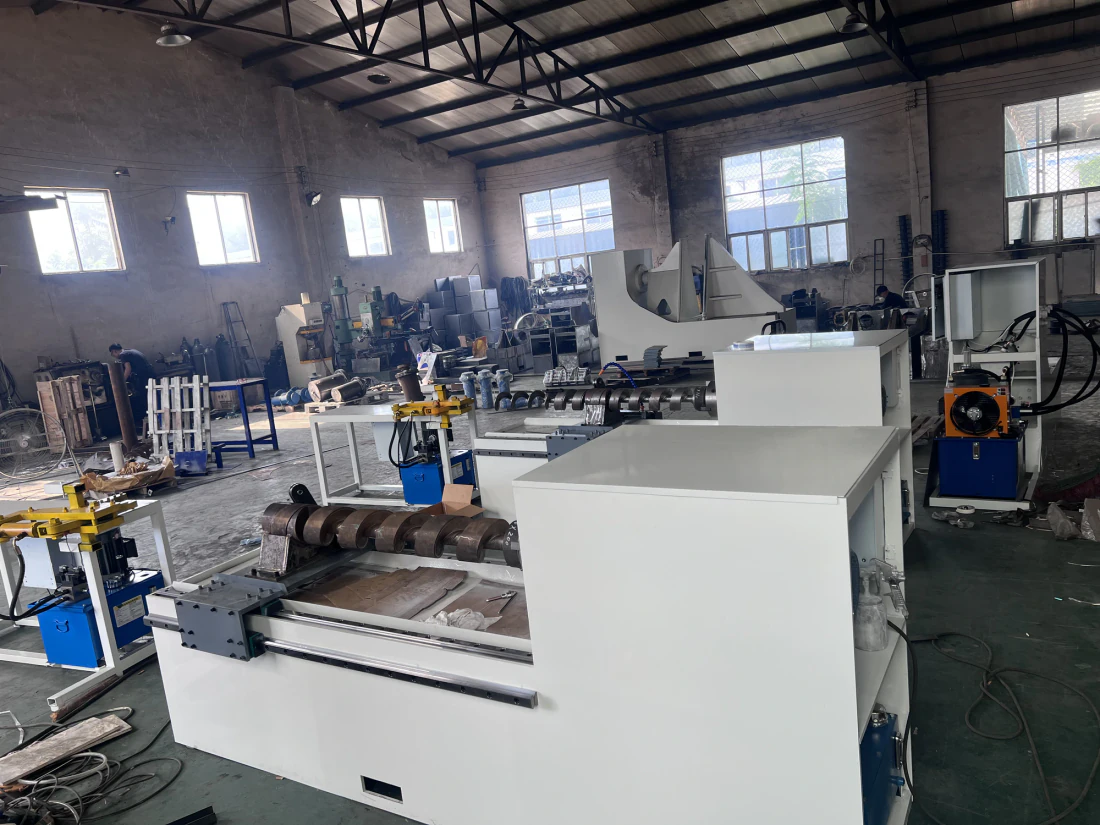

Continuous Screw Flight Winding Machine
Compare HW series mould-winding machines by strip thickness, pitch, outside diameter and maximum strip width.
View details

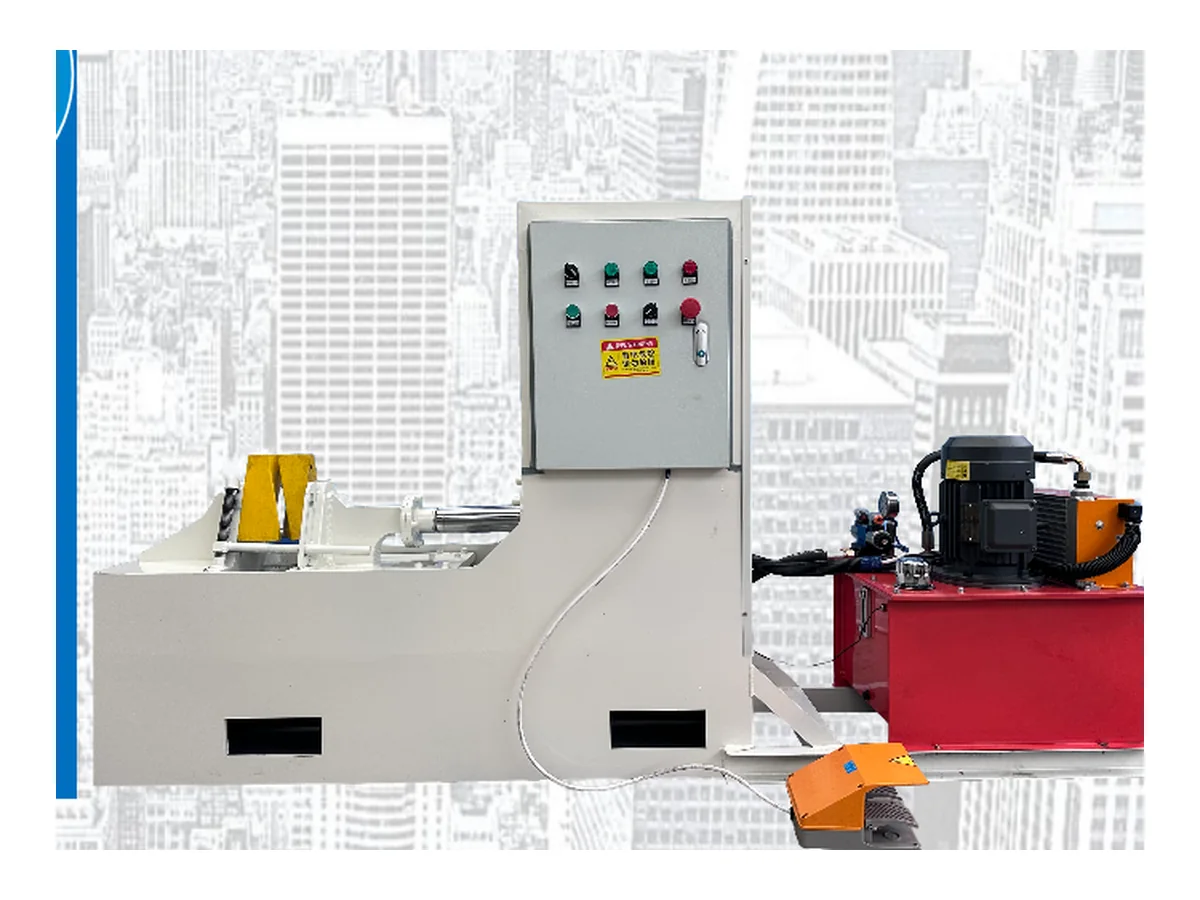

HP100 Sectional Flight Forming Machine
The HP100 catalogue configuration uses a 20-ton hydraulic cylinder and a 3 kW motor for sectional flight forming.
View details

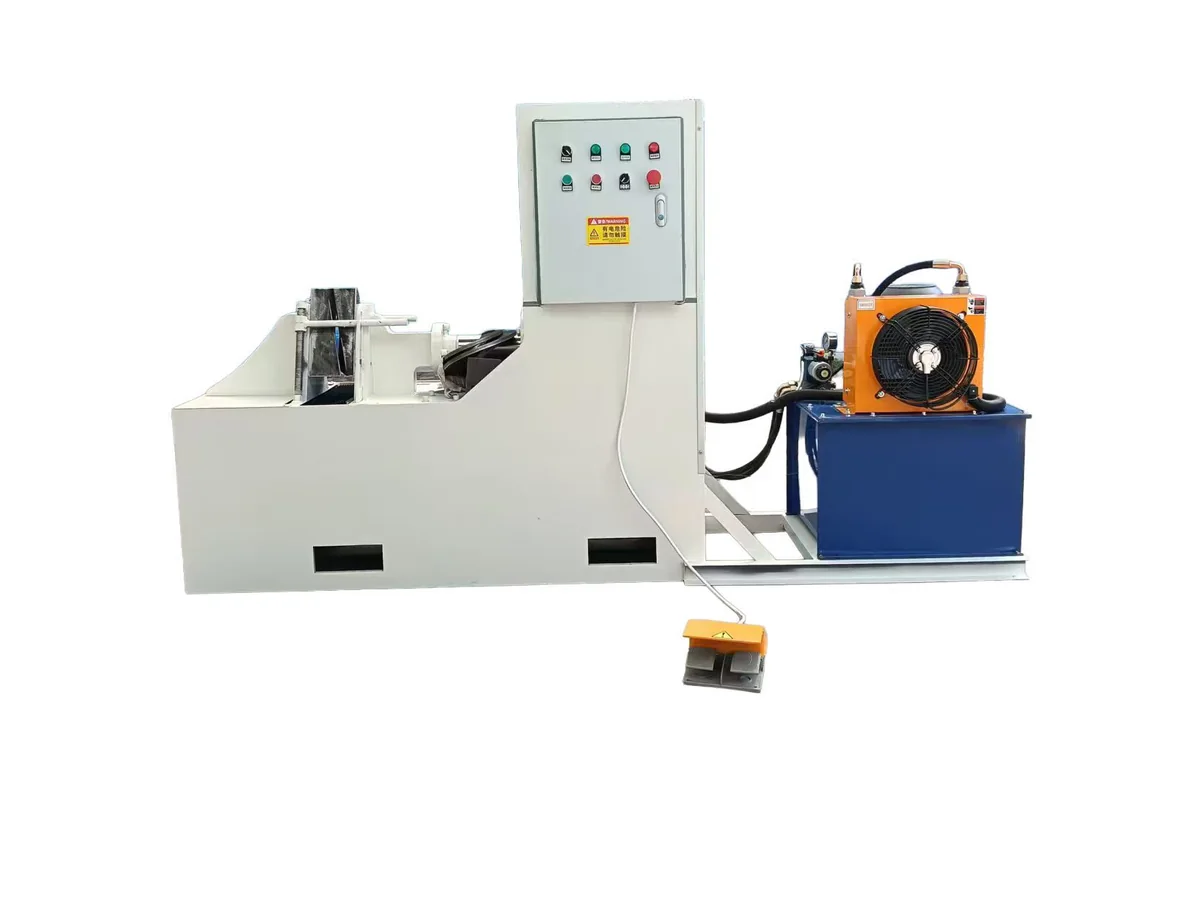

HP140 Sectional Flight Forming Machine
